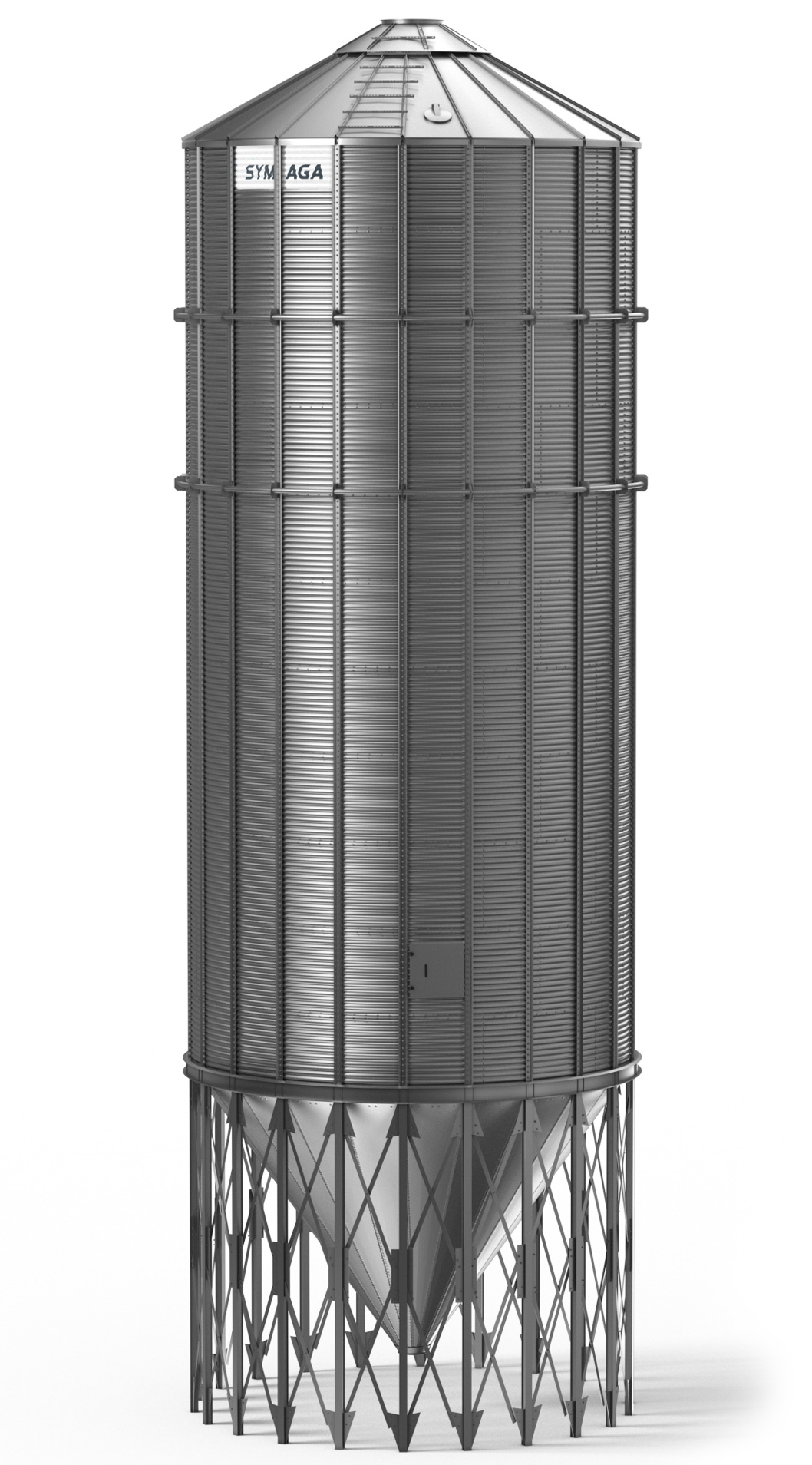

HOPPER SILOS

Our metal hopper silos are the optimal choice for storage and the unloading of grain by gravity.

Essential in sectors such as breweries, feed mills, port terminals, mills, bioethanol, oilseeds, dryers, flour mills, as well as storage of raw material for the plastic and biofuel industry.
Brewery

Mexico

Malthouse

New Zealand

Rice mill

Spain

Mill

Korea

Wood pellets

Canada

Plastic storage

Belgium

Seeds

Russia

Previous slide
Next slide

Diameters

From 3 to 12.23m

Capabilities

From 5 m³
to 2,922 m³

Guaranteed steel

S450 GD with Z600g/m² coating on the cylinder and ZM310 g/m² coating on the roof

Calculation of the structure

In differents norms : ANSI - ASAE EP 433 2033, EUROCODE EN - 1991-4 or in any other required local norm

SILO COMPONENTS

ROOFS//

Flexilibity and maximum resistance

TRAPEZOIDAL SECTION:

sector-de-techo-silos-symaga
Material

Steel

S280GD. according to EN 10346:2015
Galvanisation
ZM310 according to EN 10346:2015
Breaking load
360 N/mm2.
Yield strength
280 N/mm2
Thickness
e= 0.8
Design and Technical Characteristics

Roof wave. Symaga special design to improve water evacuation/drainage
Longitudinals folds to improve rigidity.
Pre-drilled for roof vent.
Reinforcement roof wave to increase resistance when required.

Technical sheet >

ROOF STRUCTURE

estructura-de-techo-silos-symaga
Material
Steel
S280GD Z600- MAC o S350GD Z600
Galvanisation
Z600 according to UNE-EN 10346:2015
Breaking load
360/420 N/mm2
Yield strength
280/350 N/mm2*
Thickness
e= 2 a 3.5 mm
Design and technical features

Profile: SIGMA

From Ø 1070-1223 and/or higher than standard ceiling loads.

Technical data >

COLLAR AND ROOF COVER

collar-y-tapa-de-techo-silos-symaga
Material
COLLAR AND ROOF COVER
Steel
Galvanised S275 JR according to EN 10025-2:2020
Galvanisation
HDG according to EN ISO 1461:2023
Profile
Curved ‘Z’ shaped
Thickness
e= 3mm
FALDÓN
Steel
Galvanised S280 GD according to EN 10346:2015
Galvanization
Z600 according to EN 10346:2015
Thickness
e= 2mm
LOADING PORT
Steel
Galvanised S275 JR according to EN 10025-2:2020
Galvanization
HDG according to EN ISO 1461:2023
Thickness
e= 3 and 5 mm
LOADING MOUTH COVER
Steel
Galvanised S280 GD acc. to EN 10346:2015
Galvanization
Z600 according to EN 10346:2015
Thickness
e= 3 and 5 mm
Design and technical characteristics

Roof collar:Circular structure for the union and support of beams and roof sectors.
Skirt: Circular sector supported on the roof collar and on which the load mouth is fixed.
Loading mouth: Shaped plate supported on the skirt and on which the roof cover is supported. Dimensions: 800 mm (silos 4.60 : 16.80) and 1050 mm (silos 17.57 : 19.86).
Loading mouth cover: Square plate fixed to the loading mouth to close the silo on which the loading systems are placed.

Technical sheet >

CYLINDER//

Precise Manufacturing and Efficient Design

BODYSHEETS

virolas-silo-symaga
Material
Steel
S450GD EN 10346:2015
Galvanization
Z600 EN 10346:2015
Breaking load
510 N/mm2
Yield strength
450 N/mm2
Thickness
e= 0.8 to 4 mm
Design and technical features

Undulation: 76×14 mm
Usable height: 1140 mm
Usable length: 2400 mm

Technical data >

STIFFENER

refuerzo-silos-symaga
Material
Steel
S450GD EN 10346:2015
Galvanization
Z600 EN 10346:2015
Breaking load
510 N/mm2
Yield strength
450 N/mm2
Thickness
e= 1,5 a 4 mm
Design and technical features

Omega profiles: Special design to support the vertical load.
Perforations: Every 76mm.

Technical sheet >

COMPRESSION RING

Used in SCE silos for all models Ø: 4.60, 5.35, 6.10, 6.87, 7.60, 8.40, 9.20, 9.93, 10.7*, 11.45* and 12.23*m. *Double ring.
Material
Profiles
UPN S275JR UNE-EN 10025-2:2020
Galvanization
HDG EN ISO 1461:2023
Breaking load
410-560 N/mm2
Yield strength
275 N/mm2
Thickness
e= 5 mm a 20 mm
Design and technical features

Curved profiles
Welding on both sides to avoid leaks

Technical sheet >

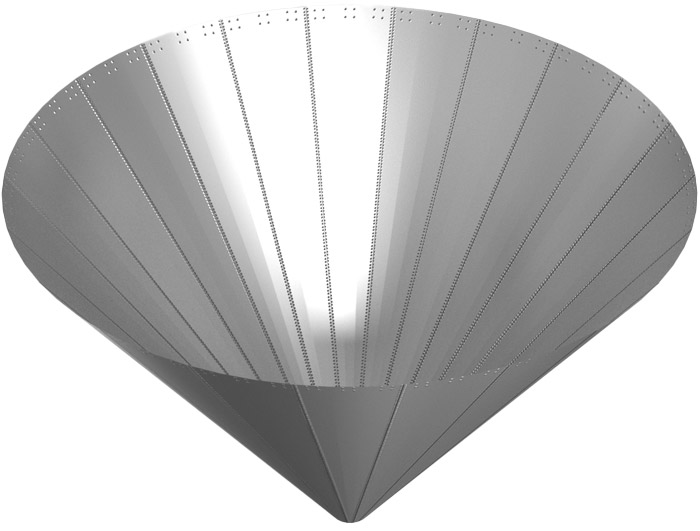

HOPPER//

Material
Sectors and reinforcements
Steel
S450GD UNE-EN 10346:2015
Galvanization
Z600 UNE-EN 10346:2015
Breaking load
510 N/mm2
Yield strength
450 N/mm2
Espesores
e= 2 mm to 4 mm
Discharge port.
S275 JR + HDG
Thicknesses
e= 3 mm
Design and technical characteristics

Composed of hopper sectors joined to each other, to the cylinder and to the unloading mouth.
Inclination of 45º and 60º.

Technical sheet >

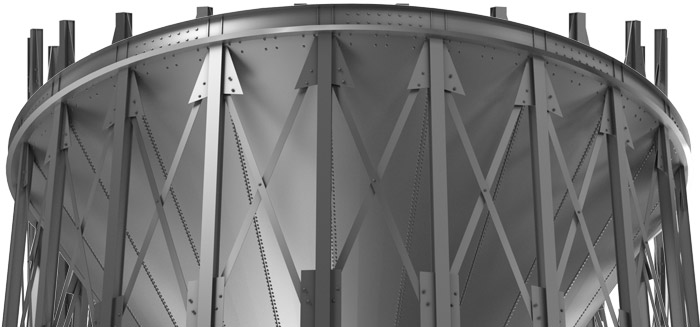

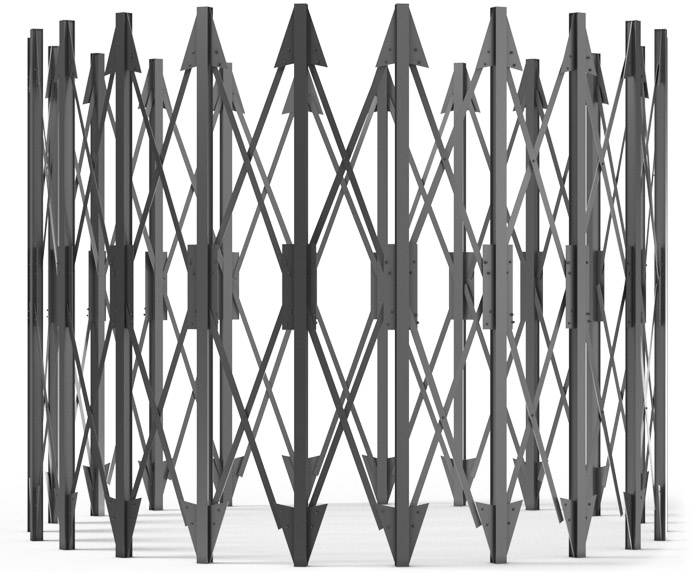

INFERIOR STRUCTURE//

Material
Pillars
HEB
Bracing
Angle brackets ‘L’ Galvanised steel S275 JR EN 10025-2:2020 + HDG EN ISO 1461:2023
Design and technical characteristics

Formed by pillars and bracing supporting the silo body.
Anchor plates at the top and bottom.

Technical specifications >

OTHER STANDARD COMPONENTS//

Galvanised pipe

MATERIAL:
Steel: E220 according to EN ISO 10219:2016
Galvanisation: Z275 according to EN 10346:2015
Thickness: e=2 mm

DESIGN AND CHARACTERISTICS:
Ø= 60mm L= 6000mm

Technical sheet >


Clamp and bracket

MATERIAL:
Steel: S280GD to EN 10346:2015
Thickness: clamp e=2mm, support e=3mm

Technical data >

MATERIAL:
Steel: S280 GD EN 10346:2015
Galvanisation: Z600 EN 10346:2015
Thickness: e= 3mm

DESIGN AND CHARACTERISTICS:
Punched in different positions
Angle 40×40
Length 1100 mm

Technical sheet >

MATERIAL:
Steel: S 280 GD EN 10346:2015
Galvanisation: Z600 according to EN 10346:2015

DESIGN AND CHARACTERISTICS:
Ø 400 mm
Pressure lock seals the door

Technical sheet >

MATERIAL:
Steel: S275JR UNE-EN 10346:2015
Galvanised: HDG UNE-EN ISO 1461:2023

DESIGN AND CHARACTERISTICS:
Access to the inside of the silo.
Size: 600x700mm.
Closure: 4 pressure screws (2 external and 2 internal) and foam.
Pre-drilled ferrule: Avoids work on site.

Technical sheet >

MATERIAL:
Hot dip galvanised (M 10: 70 – 85 and M8 50 – 80 micron zinc)
Extra strength and extra corrosion protection.

DESIGN AND CHARACTERISTICS:
Quality: 8.8 and 10.9
Pre-assembled washer to avoid on site work

Technical data >

Supplied with double cord to ensure optimum sealing.

Technical data >
